This is the ultimate development board for the Picaxe 08M2,14M2 & 20M2 microcontrollers.

The development board is designed to aid faster prototyping and i personally use mine everyday to test theories and ideas that spring to mind that otherwise would take far too much time to prototype on a breadboard or stripboard.

Just about everything I am likely to need is already on the board and ready to go from the off.

There are also some ready formatted picaxe files free to download that give you the preformatted code needed to use all of the sensors and modules on the board. These are all tried an tested and all code is commented to allow a good understanding of the codes implementation in a real word scenario.

There will be more files added as interest grows with its users.

The PCB is available and a full build your own kit with all of the components required.



The Picaxe brand name is the property of Revolution Education Limited

I have no affiliation with them either financially or commercially.



I urge anyone that is not familiar with the brand to visit the Picaxe website and forum, it's is a world of great information and very helpful people.

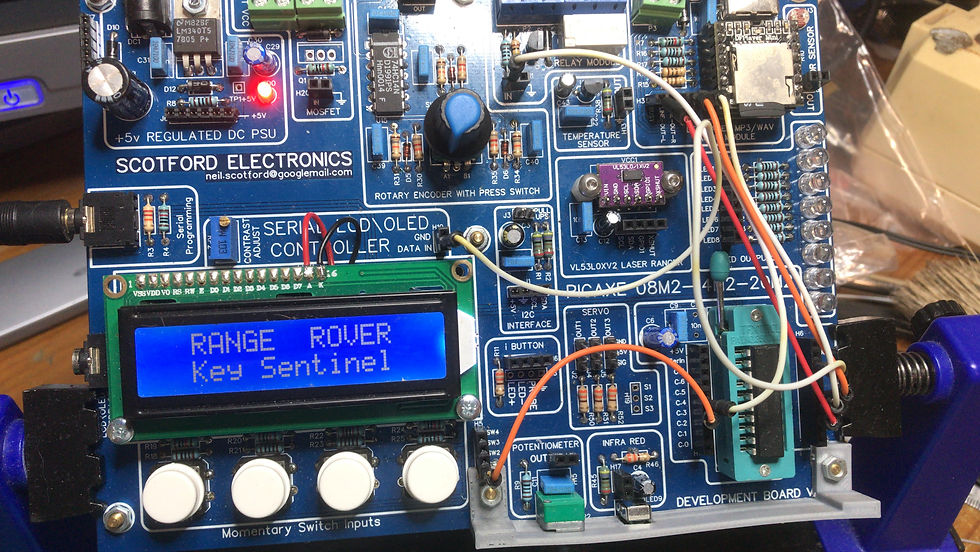

Picaxe Development Board

£19.99Price
Quantity
    • Compatible with Picaxe 08M2, 14M2, 20M2
    • Serial LCD
    • Rotary Encoder with Press Switch
    • DPDT Relay Output
    • I2C Interface
    • 3x Servo Outputs
    • 8 x Red LED Outputs
    • 4 x Button/Switch Inputs
    • Dallas DS18B20 Temperature Sensor
    • Dallas iButton Probe Input
    • Mosfet Output
    • Infra Red Remote control Input
    • Potentiometer Input
    • VL53LOXV2 Laser Ranger (TOF)
    • Light dependant resistor (LDR)
    • DF Player SD Card MP3 Player
    • External Speaker output for DF Player
    • External USB Port Input for DF Player
    • On board 3.5mm Programming socket for Picaxe
    • On board 3.5mm Programming socket for LCD
    • Built in +5v Regulated Power Supply
    • Extra +5v and Gnd outputs
